Displaytech EMB024TFTDEMO Embedded 2.4 inch TFT Demo Board with Microchip PIC24FJ256DA210 (240x320 Resolution)
Features on Displaytech EMB024TFTDEMO Embedded 2.4 inch TFT Demo Board with Microchip PIC24FJ256DA210 (240x320 Resolution)
- Display Resolution: 240 x 320
- External Interfaces: USB ICSP, 3 GPIOs
- MCU: Microchip PIC24FJ256DA210
- Storage Memory: 2MB SPI Flash
- External RAM: 512Kb Parallel SRAM (for frame-buffer)
Description for Displaytech EMB024TFTDEMO Embedded 2.4 inch TFT Demo Board with Microchip PIC24FJ256DA210 (240x320 Resolution)

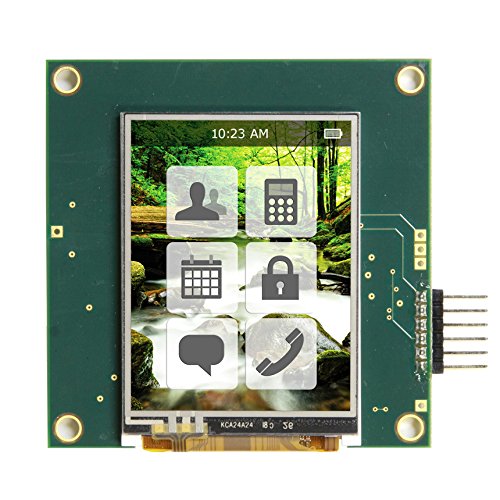

The Displaytech EMB024TFTDEMO is a demonstration and development board for the Displaytech DT024BTFT 2.4" color TFT LCD display. The 240x320 resolution display with Ilitek ILI9340 driver IC is controlled by a Microchip PIC24FJ256DA210 microcontroller with integrated graphics controller. Furthermore, the demonstration board includes on-board external SRAM for extra frame-buffer memory as well as SPI flash for storing fonts and images.
Data sheet available from the Displaytech Technical Forum.
Additional tools required to program the EMB024TFTDEMO:
• Microchip Pickit3 Programmer (available at www.microchipdirect.com)
• Firmware running the Microchip Graphics Object Layer (demonstration can be obtained from the Displaytech Technical Forum)
• Microchip's MPLABX IDE and X16 compiler will be required to run the demo. Both are available at www.microchip.com.
